"Tri-proof"series 5050 White smd led

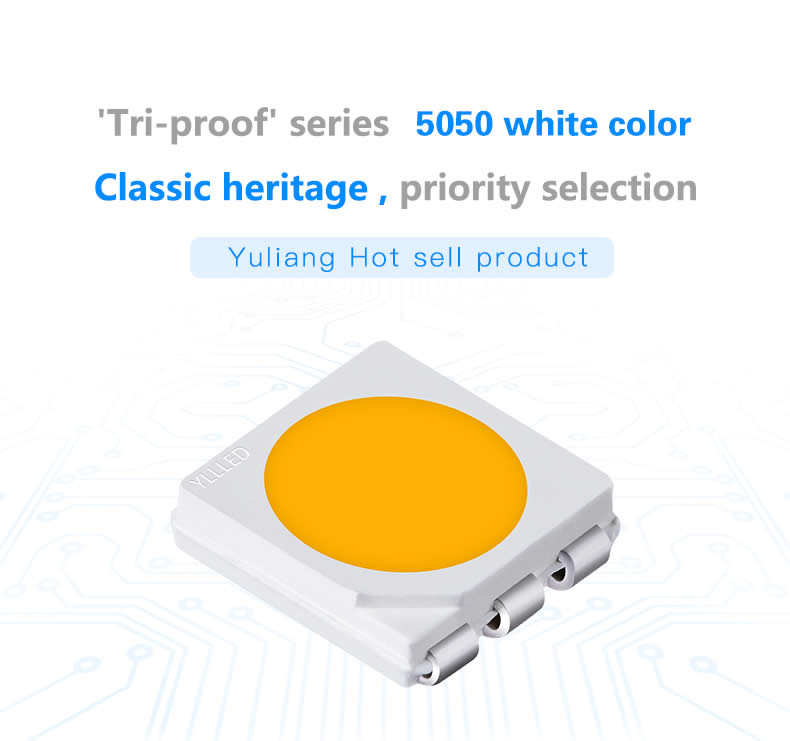

"Tri-proof"series 5050 White smd led chip

5050白光

    "Tri-proof"series 5050 White smd led chip Tech specs:

    - Type:SMD LED

    - Model Number:YLL-5050W

    - CRI:80Ra-90Ra

    - Power:0.2W

    - Chip:Epistar,CREE

    - Viewing Angle:120°

    - Emitting Color:Amber/Gold Yellow/Warm White/ Pure White/Cool White/Pink/ Ice Blue

    - Warranty:2Years

    - Certification:EN62471,CE,SDS,SGS,ROHS


"Tri-proof"series 5050 White smd led chip useing EPISTAR\CREE chip package,low light attenuation.

"Tri-proof"series 5050 White smd led chip Parameter:

Product

Color

VF(V)

WL(nm/k)

IV(mcd/lm)

IF(mA)

Angle(°)

5050 white

SMD LED



(Can be customized)

Gold yellow

2.8-3.4

2000-2200K

18-22lm

3*20mA

120

Warm white

2.8-3.4

2400-2600K

2600-2800K

2800-3200K

20-22lm

24-26lm

24-26lm

3*20mA

120

Neutural light

2.8-3.4

4000-4500K

24-26lm

3*20mA

120

Pure white

2.8-3.4

6000-6500K

24-26lm

3*20mA

120

Cool white

2.8-3.4

7000-25000K

20-22lm

3*20mA

120

Pink

2.8-3.4

25000-30000K

14-18lm

3*20mA

120

Ice blue

2.8-3.4

25000-30000K

14-18lm

3*20mA

120

Amber

2.8-3.4

1500-1700K

18-22lm

3*20mA

120

Yellowish

2.8-3.4

3500-4000K

28-30lm

3*20mA

120

Super bright

2.8-3.4

2800-3200K

4000-4500K

6000-6500K

26-28lm

28-32lm

28-32lm

3*20mA

120



"Tri-proof"series 5050 White smd led chip Application:led module,rigid and flexible strip,outdoor fixture,etc.

5050白光

    5050 White smd led chip Color Standard:




Instruction Manual
SMD LED Instruction Manual
Thank you for using Shenzhen Yuliang Optoelectronics Co., Ltd. LED series products, in order to enhance your understanding of our company's product characteristics, to facilitate you to master its characteristics during use, to minimize or avoid unnecessary factors caused by human factors Damage or performance mismatch. Hereby explai
1. Material confirmation
Is the LED BIN rating of the feed matched? For example: voltage CIE BIN brightness and other parameters are the same level, the same level should be used together. Whether the positive and negative polarities meet the requirements, whether the different foot positions meet the requirements. If the same level of LED is not applied to the same item, its applicability should be evaluated first. (If the different voltage BINs are used together, the brightness may be different, and different CIE BINs may use the luminescent colors together to make a difference).
2. Packing and storage
Avoid moisture entering the inside of the LED before opening the package. It is recommended that the SMD series of LEDs be stored in a desiccant drying cabinet. Storage environment temperature range 5-30 degrees, humidity does not exceed 50%.
3. Preventive measures after opening the package
After unpacking, take the whole roll dehumidification measures as much as possible, and dehumidify the conditions: baking at 70 degrees for 4-12 hours. The dehumidified material should be used as soon as possible (within 24 hours). Remaining material should be sealed or placed in an environment with 10-40 degrees humidity and no more than 30% humidity.
4. Operational notes
This product can only be rewelded at most twice and after the first reflow, it must be cooled to room temperature before the second reflow can be performed. It is recommended that the reflow temperature range is 200-240 degrees. During the operation process, the material can not be taken directly by hand. There is sweat on the hand, and the sweat on the surface of the silica gel has optical pollution, affecting the light. In addition, the silica gel is relatively soft, and hand squeezing will cause the dead lamp to be broken. It is not recommended to mount LEDs on a bent circuit board. Avoid rapid cooling during soldering. Avoid any form of mechanical force or excessive vibration during LED solder cooling. After soldering, do not bend the circuit board. During rework or single-material work, the surface of the colloid cannot be squeezed with tweezers. Because silica gel is relatively soft, squeezing the colloid with tweezers can lead to wire breakage, which can damage the chip and cause it to die. In batch operations, the suction nozzle smaller than the inner diameter of the product will cause the nozzle to punch the silicone, causing the gold wire to break and the chip to be pressed and die. It is not advisable to carry out soldering for the repaired LED. If it is unavoidable, double-head soldering iron should be used. However, it is necessary to confirm in advance whether the LED characteristic will be damaged after the repair.
5. Electrostatic Protection
Electrostatic protection LED is an electrostatic sensitive electronic device. Various measures should be taken to avoid static electricity. For example: Wear an electrostatic ring during use. All devices, equipment and instruments should be grounded. It is recommended to test the assembled LED product to check whether the LED is damaged by static electricity.
6. Cleaning
It is recommended that isopropyl alcohol be used to clean the LEDs. If using other solvents for cleaning, make sure that the solvent does not affect the epoxy, silicone, or stent silver layers. Ultrasonic cleaning is not recommended to avoid damage to the LED. If it is unavoidable, please perform a pre-test beforehand to confirm whether it has adverse effects on the LED or potential problems.
7. Other considerations
Long-term exposure of the LED to sunlight or occasional exposure to ultraviolet light may cause yellowing of the gel. In order to ensure the photoelectric performance of the LED, please keep the surface of the LED lighting area clean and avoid fingerprints or other foreign objects covering. When designing the circuit, reverse voltage or excessive current in the switching process should be prevented from impacting the LED instantaneously. During use, avoid sharp tools such as tweezers touching the silicone gel section.
