5050
YLL-T50RGBW4-80-BJ-40
Quantity
Special Series 5050RGBW
Description:

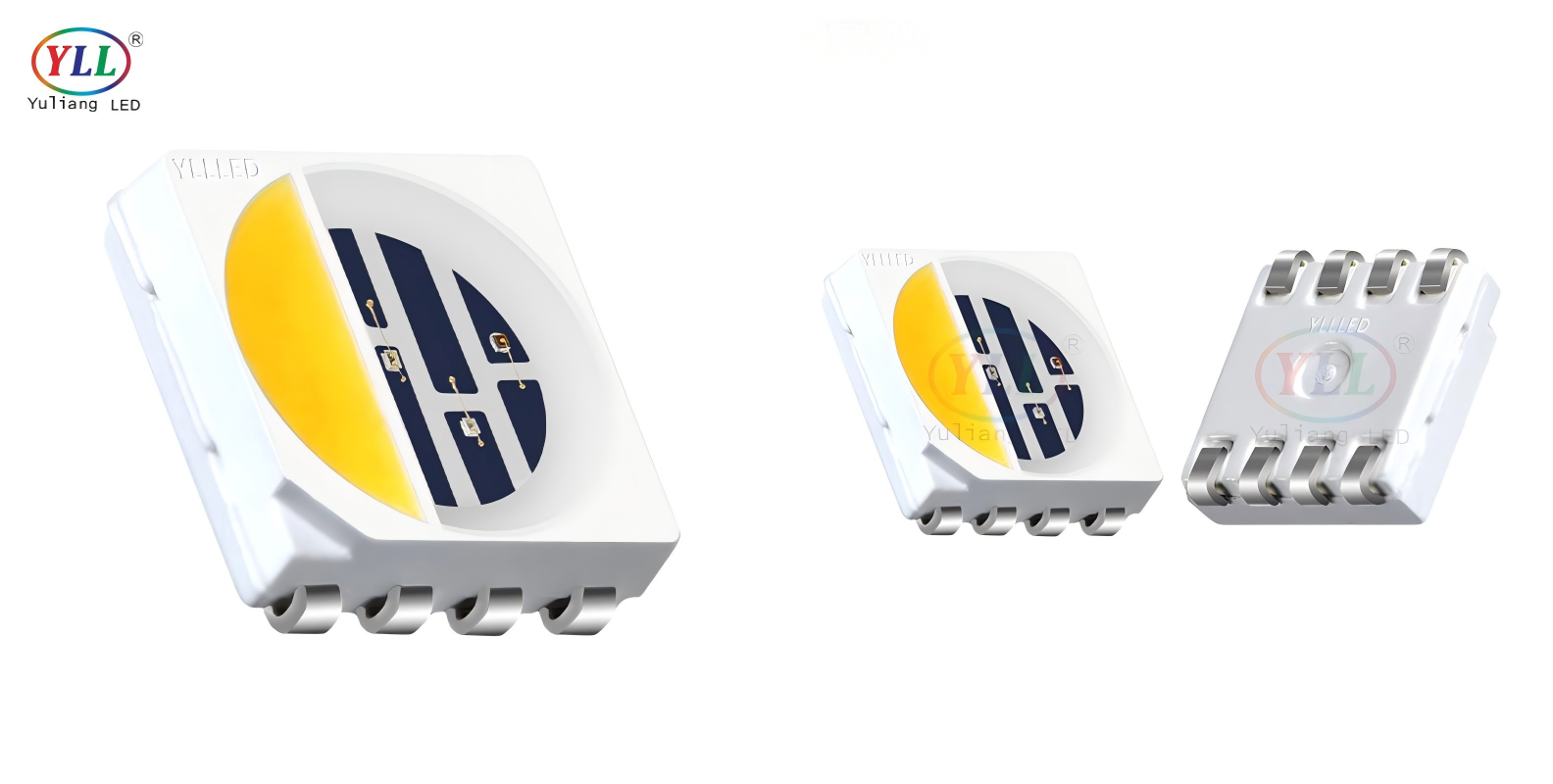

The 5050RGBW Special Series from Yuliang LED is a versatile, high-performance component built for creative lighting solutions. Its key features provide unmatched control and vibrancy:
- 4-in-1 Color Chip: Integrates red, green, blue, and white into a single bead for a spectacular range of colors and pure white light.
- Fully Dimmable: Brightness is easily controlled via controllers, making it ideal for smart lighting projects.
Specifications:
Product | Colors | VF(V) | WL/CT(nm/k) | IV(mcd/lm) | IF(mA) | Angle(°) |
5050RGBW (0.4W) | RGBW | 2.0-2.4 | 620-630 | 800-1000 | 20 | 120 |
3.0-3.4 | 520-530 | 1400-1600 | 20 | 120 | ||
3.0-3.4 | 460-470 | 300-500 | 20 | 120 | ||
2.8-3.4 | 1500-30000 | 20-22 | 60 | 120 |
Cetificates:
The Special Series 5050RGBW is manufactured in compliance with rigorous international standards and holds multiple certifications, including REACH, RoHS, and EN 62471.

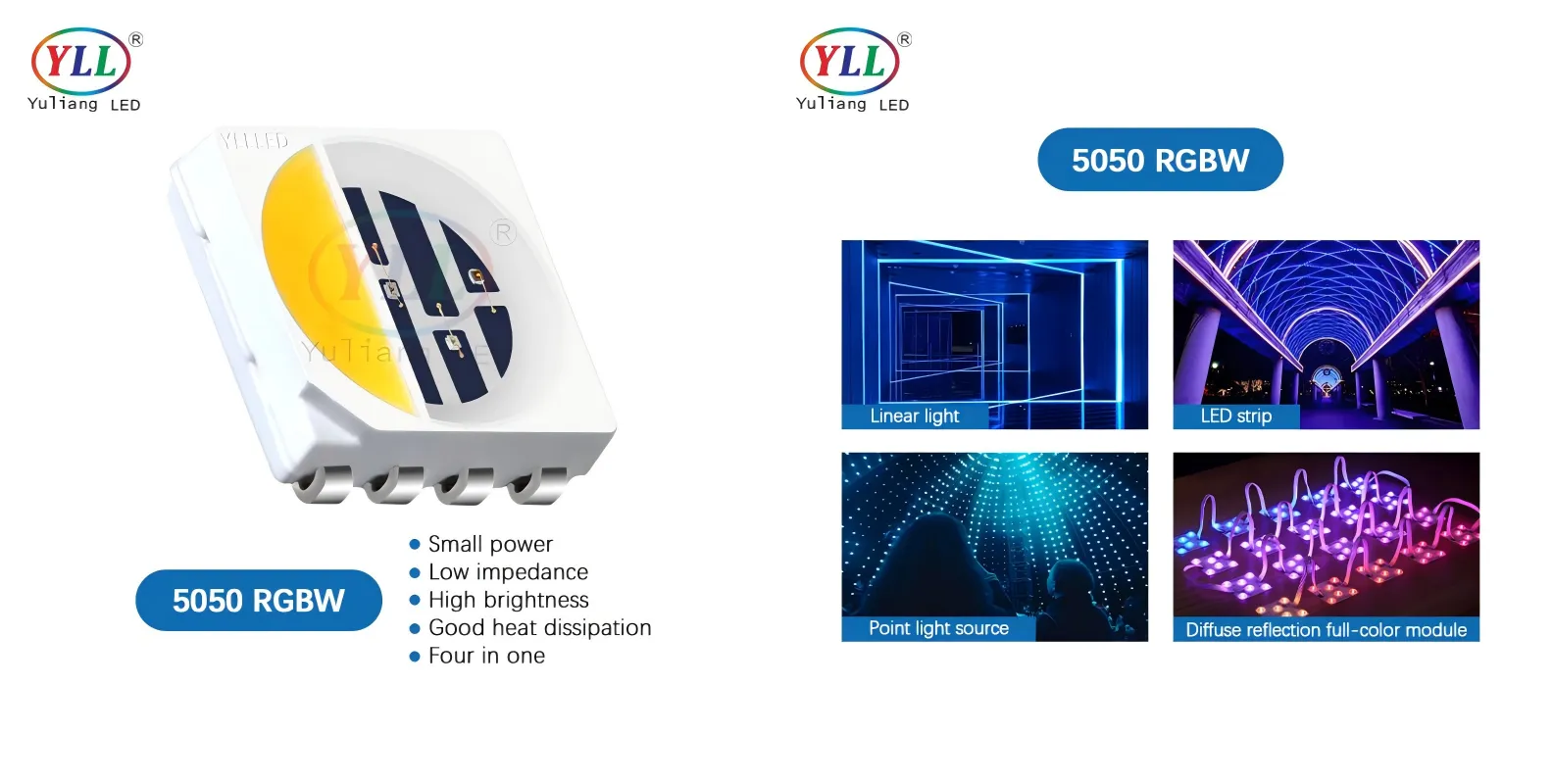

Features:
- Small Power: Its low power consumption significantly reduces energy usage, leading to substantial cost savings over time.
- Low Impedance: The minimal electrical resistance ensures high luminous efficacy, meaning more light is produced per watt of power.
- High Brightness:This intense luminosity makes the LED versatile and suitable for a wide range of application scenarios.
- Good Heat Dissipation: The efficient heat dissipation system prevents overheating, which is crucial for ensuring the product's long operational lifespan.
- Light Colours (4-in-1): By integrating red, green, blue, and white chips into a single unit, it produces vibrant and diverse colors, offering powerful decorative capabilities.
Applications:
The Special Series 5050 RGBW is engineered for a wide array of applications, both indoor and outdoor, including:
- LED Strips (flexible and rigid)
- LED Modules & Linear Lamps
- Decorative Lighting for 3C Devices
- Drone Lights
- Pixel Dots for Digital Cameras
